PAᴴᵀ GF

Original price was: $88.88.Current price is: $79.99.

Buy More Save More! Quick add for bulk savings.

4 Rolls — 5% OFF

6 Rolls — 10% OFF

10 Rolls — 15% OFF

As low as $67.99 per roll.

Product Features

Glass Fiber Reinforced for Enhanced Stiffness & Durability
Ultra-Low Warping for Precision Engineering Parts
Exceptional Interlayer Strength & Impact Resistance
Low Moisture Absorption & Hydrolytic Stability
Automatic Feeding System Compatible (AMS/CFS Supported)
Stable High-Speed Printing up to 230 mm/s
Diameter: 1.75mm +/- 0.03mm

Cautions for Use

Minimum 0.4 mm Nozzle Size
Stainless Steel Nozzle Not Recommended
Mandatory Dry Out Before Use
Enclosed Printer Strongly Recommended
Full AMS/CFS Compatibility
Store Sealed with Desiccant

Shield-7

Clear

SKU: N/A Category: PA

Order Info

Free shipping on orders over $89
Free shipping on orders over $199 to remote areas including Alaska, Hawaii, Puerto Rico, Guam, Northern Mariana Islands and American Samoa. See our Shipping Policy for details.

IPCON Glass Fiber Reinforced PA-HT
Precision Engineered for Industrial Durability

IPCON’s PA-HT GF material enhances high-temperature polyamide with glass fiber reinforcement, delivering high dimensional stability, superior rigidity, and excellent impact strength. Engineered for low warping and reliable layer adhesion, it produces durable, precision components suitable for automated production and demanding industrial applications.

pa ht gf, pa ht gf filament, pa filament

Ultra-Low Warping
High Precision & Wear Resistance

IPCON’s PAᴴᵀ GF material utilizes glass fiber reinforcement respectively to substantially increase the mechanical strength and dimensional stability of high-temperature polyamide (PAᴴᵀ). Formulated for printing high-fill parts without the need for a heated chamber, these compounds produce parts with superior surface precision and abrasion resistance, readily meeting the rigorous industrial requirements for high-strength and wear-resistant components in a wide range of power tools.

IPCON PAᴴᵀ GF 3D Printing Filament With Exceptional Performance

Superior Interlayer Performance
Robust Impact Resistance

Utilizing proprietary interlayer adhesion enhancement technology, IPCON’s PAᴴᵀ GF significantly improves interlayer strength (+55%) and interlayer stiffness (+75%) compared to competitors. It also maintains better rigidity and strength in wet conditions. Combined with excellent impact strength and heat resistance (with Heat Deflection Temperatures reaching 204°C and 190°C, respectively), this material is perfectly suited for high-performance applications such as automotive, drones, and RC racing.

Filament Performance Comparison Table

Project	IPCON PAᴴᵀ CF *	IPCON PAᴴᵀ GF *	Bambu PAᴴᵀ CF
Strength (Flexural Strength – XY)	175 MPa	150 MPa	125 MPa
Layer Strength (Flexural Strength – Z)	95 MPa	100 MPa	61 MPa
Stiffness (Flexural Modulus – XY)	5933 MPa	4375 MPa	4230 MPa
Layer Stiffness (Flexural Modulus – Z)	3253 MPa	3165 MPa	1820 MPa
Toughness (Impact Strength – XY)	52.5 kJ/m²	41.2 kJ/m²	57.5 kJ/m²
Layer Adhesion (Impact Strength – Z)	15.5 kJ/m²	12.2 kJ/m²	13.3 kJ/m²
Heat Resistance (HDT @ 0.45 MPa)	204 °C	190 °C	194 °C
Saturated Water Absorption	0.99 %	0.99 %	0.88 %
Mechanical Decline Post-Absorption (Strength/Stiffness decrease, though Toughness increases)	7 % – 13 %	7 % – 13 %	12 % – 18 %
Max Print Speed	230 mm/s	230 mm/s	100 mm/s

*The mechanical properties were tested on specimens printed by IPCON using a Bambu Lab P1S printer, 0.4 mm nozzle (Nozzle Temp: 295°C, Bed Temp: 100°C, Print Speed: 100mm/s, Infill Density: 100%,) with the PAᴴᵀ GF(Red) filament. Data is for user reference and comparison only. Bambu Lab data sourced from their TDS.

Automatic Feeding
Efficient and Convenient

IPCON’s PAᴴᵀ GF is optimized for fully enclosed CoreXY printers like the Bambu Lab P1S and H2D. It is compatible with automatic feeding systems such as AMS and CFS, supporting filament run-out recovery and spool changes. Capable of stable printing at 230 mm/s, they enhance industrial production efficiency.

pa ht gf, 3d printing filament, pa filament

Compatibility

Printer Type	Enclosed (Rec.), Open-Frame
Nozzle Material	Hardened Steel, Tungsten Carbide, Diamond
Nozzle Size	0.4mm, 0.6mm, 0.8 mm
Build Plate	Smooth/Textured PEI
Support Material	Itself or support for PA
Adhesive	Liquid glue or PVP solid glue stick
AMS / CFS	Compatible

Printing Guide

Parameter	Setting
Pre – Print Drying	90-100°C, 8-14h (Convection Oven)
Recommended Nozzle Temp	270-300°C
Recommended Bed Temp	90-120°C
Cooling Fan	0%-60%
Print / Storage Temp	≤35°C, ≤20% RH (Sealed with Desiccant)
Print Speed	Up to 230mm/s

IPCON PAᴴᵀ GF is now officially available, featuring a patented paper spool and eco-friendly paper box packaging—complete with protective bubble wrap, a reusable aluminum foil bag, a label, and desiccant—all designed to ensure premium quality and support sustainability. Stay connected with our latest updates and innovations by following IPCON on social media.

*The color and texture of the filament are subject to the physical product. Images are for reference only.

pa ht cf, paht filament, 3d printer filament

pa ht gf, pa filament, 3d printing filament

Key Notes

Nozzle Requirements: Use ≥0.4mm hardened nozzles to prevent clogging/wear from PAᴴᵀ GF .
Filament Drying: For optimal results, dry used/spooled filaments at 90-100°C for 8-14 Store sealed with desiccant (≤35°C, ≤20% RH).
Printer Flexibility: High interlayer strength and anti-warping properties allow use in both enclosed and open-frame printers (apply PVP solidglue stick, bed temp 90-120°C). For large, high-density models, enclosed printers are preferred.
Overhangs & Cooling: Overhangs require enhanced cooling and supports, especially on thick spherical sections. Contact support for customized parameters for complex models.

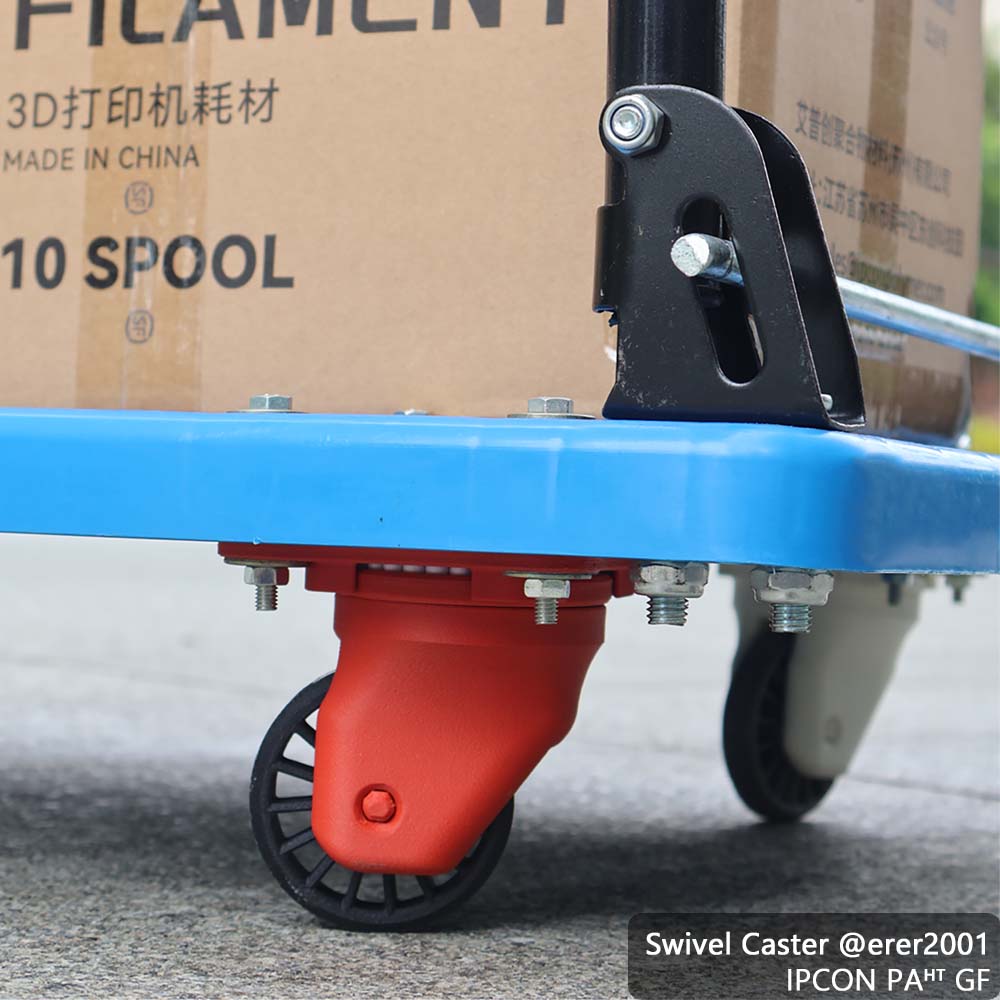

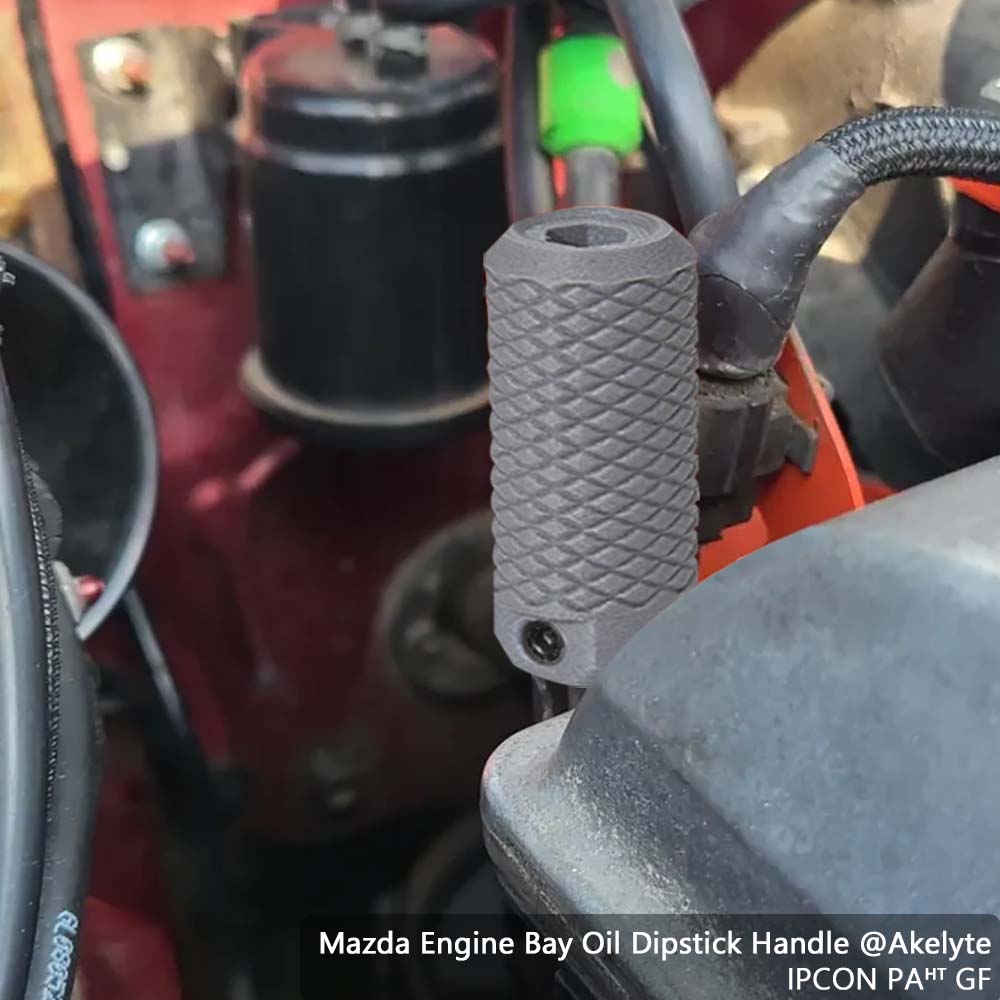

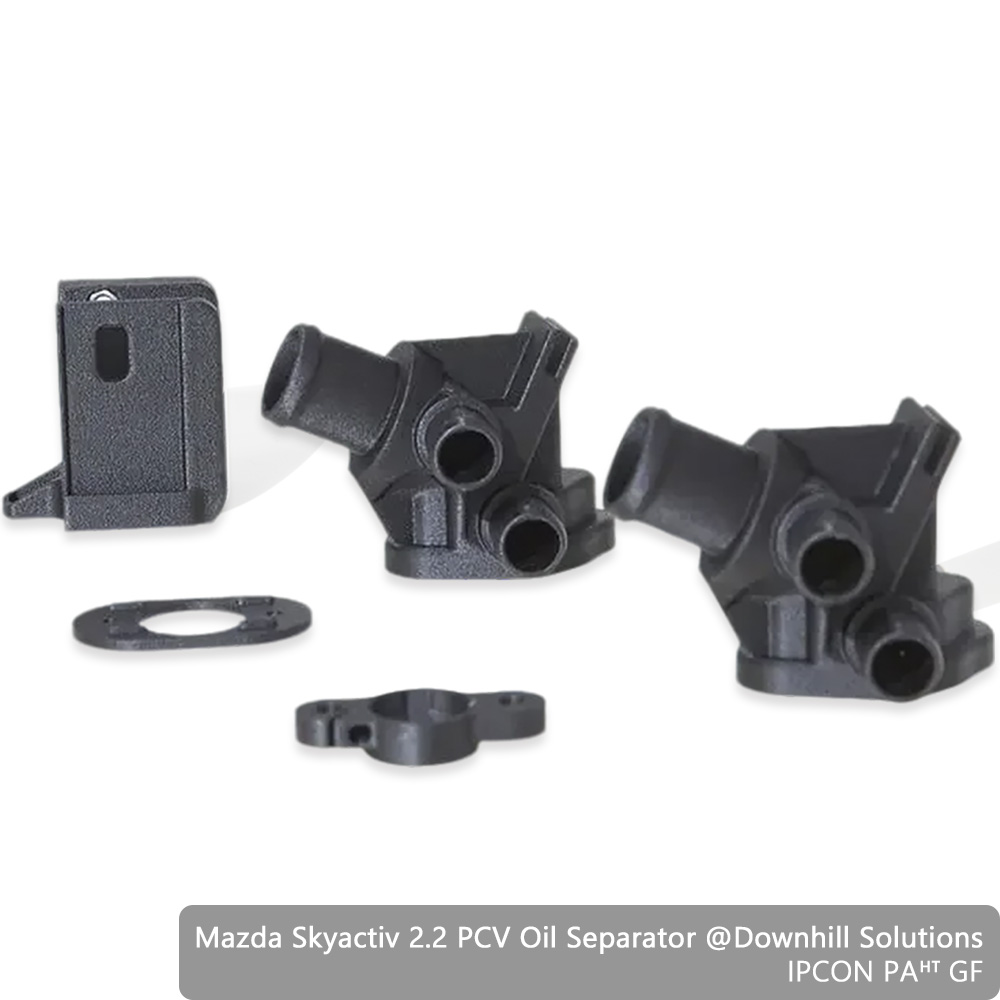

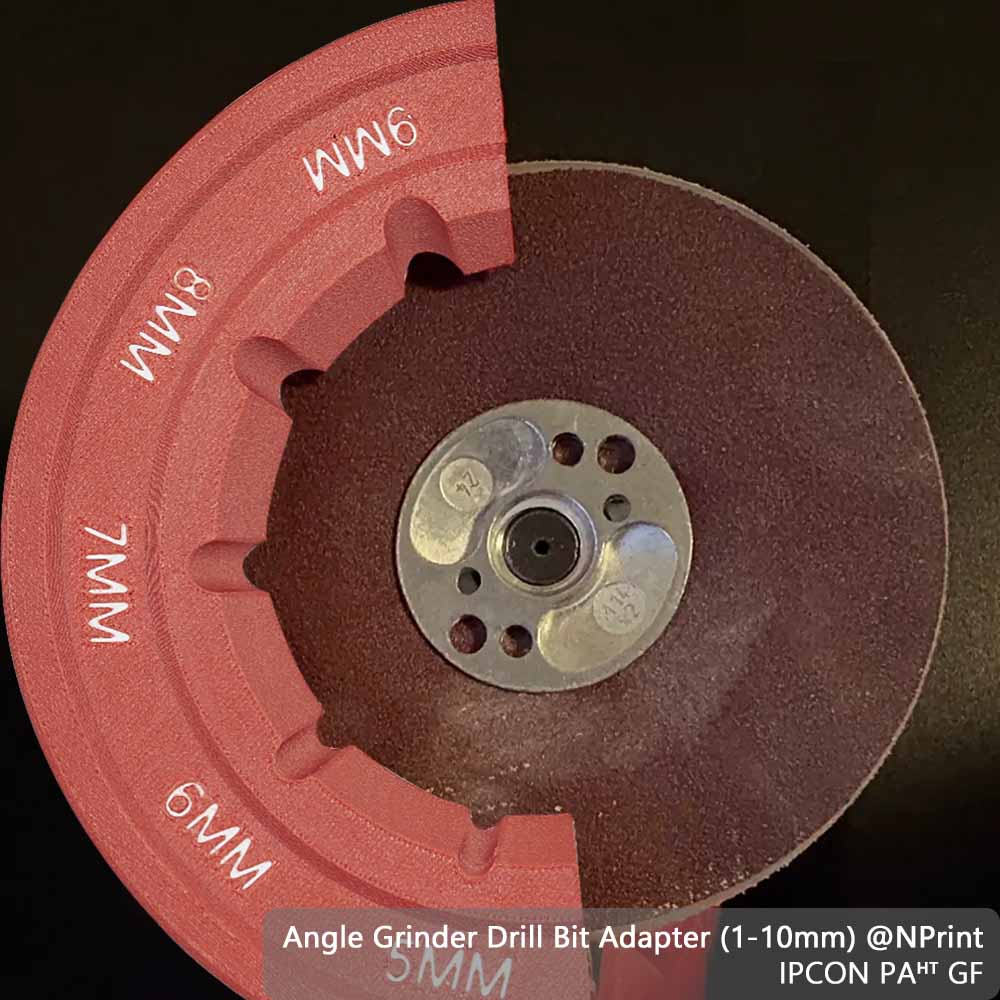

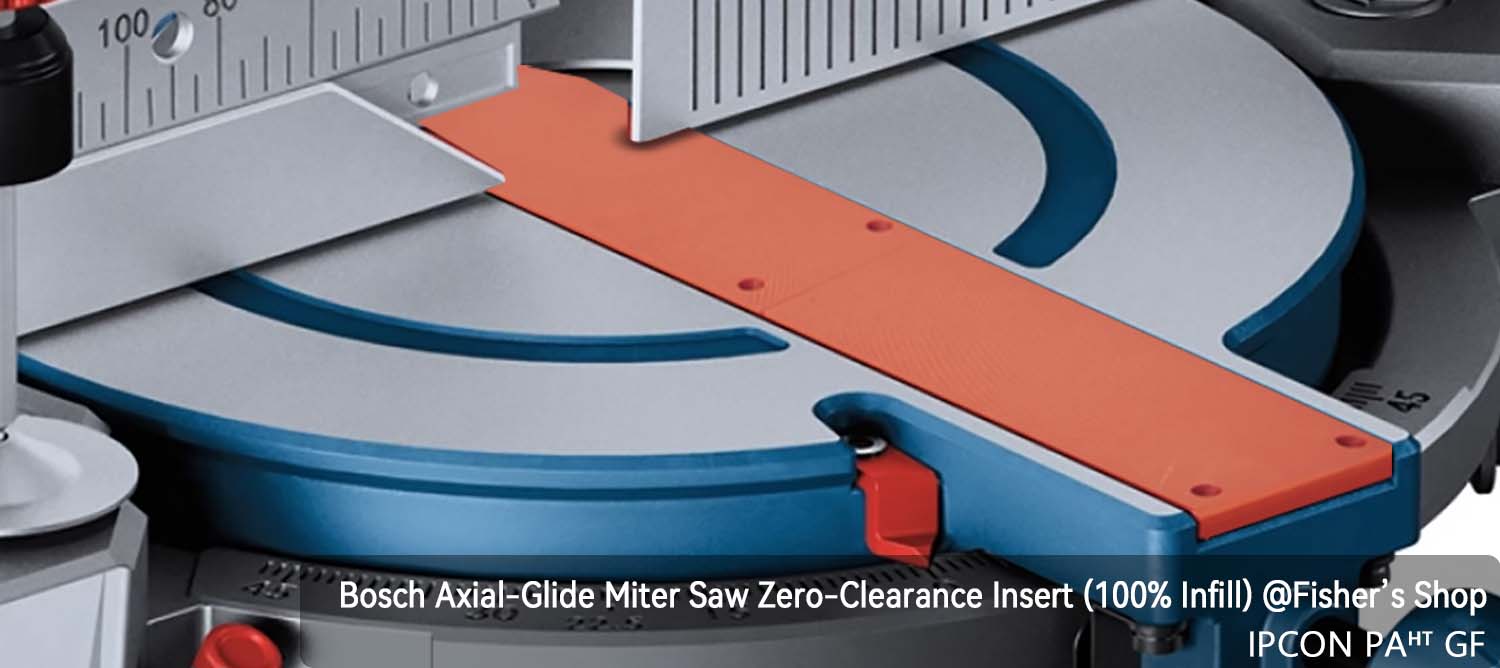

Applications: automobiles, drones, RC racing cars, and electrial tools.

PAᴴᵀ GF Filament 3D Printing Guide
