Name: PA6 GF
SKU: 1294
Availability: InStock

pla carbon fiber, pla cf filament, ed printing filament

pla cf filament, 3d printing filament, pla filament

3d printing filament, pla cf carbon fiber, pla 3d printing

pla cf, ipcon, 3d printing filament, filament

PA6 GF

$31.49

Buy More Save More! Quick add for bulk savings.

4 Rolls — 25% OFF

6 Rolls — 30% OFF

10 Rolls — 35% OFF

As low as $12.99 per roll.

Product Features

Glass Fiber Reinforced for Enhanced Stiffness, Strength & Heat Resistance
Ultra-Low Warping Allows Large-Part Printing Without Heated Chamber
Exceptional Interlayer Strength & High Impact Resistance
Low Moisture Absorption Compared to Standard PA6
Stable High-Speed Printing up to 300 mm/s
Diameter: 1.75mm +/- 0.03mm

Cautions for Use

Use Hardened Nozzles ≥0.4mm
Stainless Steel Nozzle Not Recommended
Mandatory Drying Before Printing
Enclosed Printer Strongly Recommended
Compatible with AMS/CFS Systems
Store Sealed with Desiccant

Shield-4

Clear

SKU: N/A Category: PLA

Order Info

Free shipping on orders over $89
Free shipping on orders over $199 to remote areas including Alaska, Hawaii, Puerto Rico, Guam, Northern Mariana Islands and American Samoa. See our Shipping Policy for details.

IPCON PA6 GF Filament
Engineered for Stability and Impact Resistance

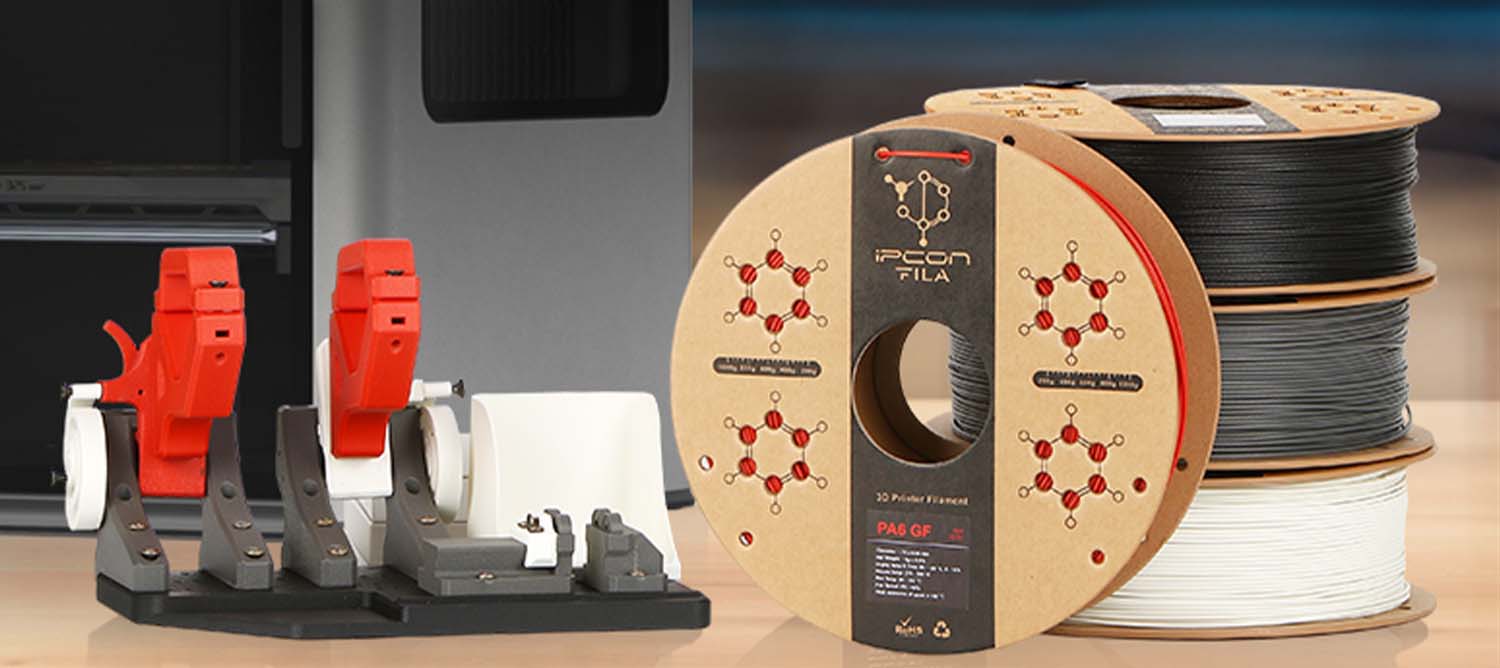

Experience superior performance with IPCON’s glass fiber reinforced PA6 filament. Designed to deliver exceptional heat stability and outstanding impact resistance, this material ensures low warpage and excellent interlayer bonding for reliable, high-strength prints. Ideal for functional prototypes and industrial applications, it supports smooth automatic feeding for consistent, hassle-free 3D printing.

pa6 cf, 3d printing filament, carbon fiber

Exceptional Rigidity, Heat Resistance, Low Warpage

IPCON’s PA6-CF grades significantly enhance the stiffness, strength, and heat resistance of standard PA6 via specialized carbon fiber reinforcement, achieving Heat Deflection Temperatures (HDT) of 197°C and 191°C, respectively. The unique formulation effectively eliminates printing warpage. This allows for large-sized parts to be printed without a heated chamber or brims, while still delivering excellent surface quality. These properties make it ideal for high-rigidity, high-strength, and heat-resistant components in dry environments where aesthetics are important, such as drying trays, air fryer handles, and hair dryer nozzles.

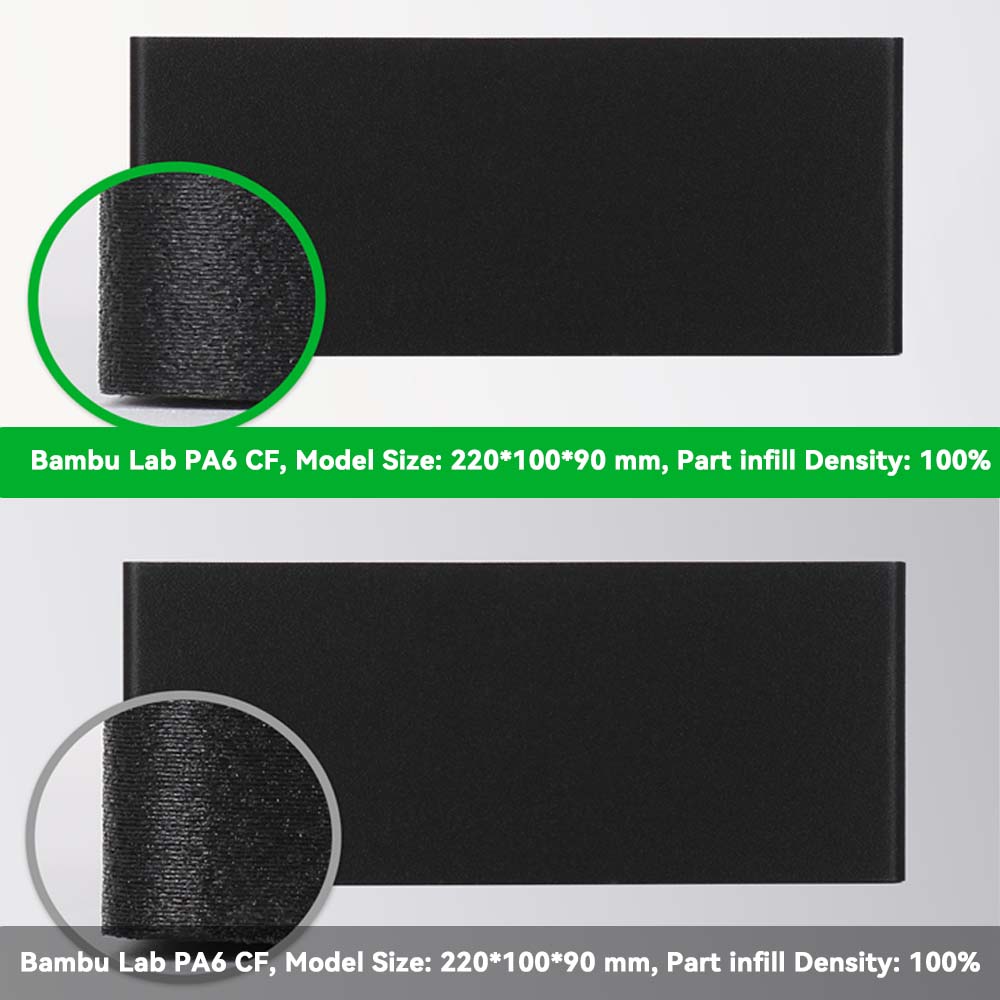

A unique formula design and carbon fiber reinforcement technology solve printing warpage issues. Large models can be printed with adhesive applied, without the need for a heated chamber.

IPCON PA6 CF 3D Printing Filament, Carbon Fiber Reinforced PA6 With High stiffness, strength, and heat resistance

3d printing, 3d printer filament, bambu labs

Excellent Interlayer Strength
High Toughness & Impact Resistance

The proprietary interlayer bonding enhancement technology endows the high-rigidity PA6 CF with exceptional interlayer strength and impact resistance. It is ideally suited for applications requiring screw fastening and high shock absorption, such as RC car chassis and linkages, power tools, and rail adapters.

Filament Performance Comparison Table

Project	IPCON PA6 CF*	IPCON PA6 GF*	Bambu PA6 CF	Bamb PA6 GF
Strength (Flexural Strength – XY)	162 MPa	140 MPa	151 MPa	120 MPa
Layer Strength (Flexural Strength – Z)	91 MPa	103 MPa	80 MPa	51 MPa
Stiffness (Flexural Modulus – XY)	5312 MPa	4375 MPa	5460 MPa	3670 MPa
Layer Stiffness (Flexural Modulus – Z)	2757 MPa	3054 MPa	2240 MPa	2300 MPa
Toughness (Impact Strength – XY)	50.5 kJ/m²	63.4 kJ/m²	40.3 kJ/m²	27.2 kJ/m²
Layer Adhesion (Impact Strength – Z)	14.7 kJ/m²	15.8 kJ/m²	13.4 kJ/m²	4.1 kJ/m²
Heat Resistance (HDT @ 0.45 MPa)	197°C	191°C	186°C	182°C
Saturated Water Absorption	2.08%	2.33%	2.35%	2.56%
Max Print Speed	300 mm/s	300 mm/s	100 mm/s	130 mm/s

*The mechanical properties were tested on specimens printed by IPCON using a Bambu Lab P1S printer, 0.4 mm nozzle (Nozzle Temp: 290°C, Bed Temp: 100°C, Print Speed: 100mm/s, Infill Density: 100%,) with the IPCON PA6 CF filament. Data is for user reference and comparison only. Bambu Lab data sourced from their TDS.

Automatic Feeding
Hyper-Speed Printing

IPCON PA6-CF is widely compatible with fully enclosed CoreXY printers like the Bambu Lab P1S and X1. It support automatic material systems (AMS/CFS) with filament run-out recovery and can be printed in Sport Mode at infill speeds of up to 300 mm/s, enabling agile and efficient manufacturing.

Compatibility

Printer Type	Enclosed
Nozzle Material	Hardened materials (e.g. Hardened Steel, Tungsten Carbide, Diamond)
Nozzle Size	0.4mm/0.6mm/0.8mm
Print Bed Type	Smooth/Textured PEI
Support Material	Itself or Supports for PA
Compatible glue	Liquid glue or PVP solid glue stick
AMS or CFS	Compatible

Printing Guide

Parameter	Setting
Pre – Print Drying	90 – 120 °C, 8 – 14 h (Convection Oven)
Recommended Nozzle Temp	280 – 300 °C
Recommended Bed Temp	80 – 100 °C
Cooling Fan	0% – 40%
Print / Storage Temp	≤35°C, ≤20% RH (Sealed with desiccant)
Print Speed	Up to 300 mm/s

IPCON PA6 CF is now officially available, featuring a patented paper spool and eco-friendly paper box packaging—complete with protective bubble wrap, a reusable aluminum foil bag, a label, and desiccant—all designed to ensure premium quality and support sustainability. Stay connected with our latest updates and innovations by following IPCON on social media, and be sure to explore our new filament with a convenient 250g trial size.

*The color and texture of the filament are subject to the physical product. Images are for reference only.

Key Notes

Nozzle Requirements: Use hardened nozzles (≥0.4mm) to prevent clogging and wear from the carbon fibers in PA6-CF.
Filament Drying: Dry used or stored filaments at 90–120°C for 8–14 hours before printing. Keep filament sealed with desiccant during printing (≤35°C, ≤20% RH).
Printing Setup: High interlayer strength, low warp. Use included glue on heated bed (80–100°C), nozzle 280–300°C. Heated chamber enhances results.
Moisture Sensitivity: Moisture reduces strength/stiffness. Avoid humid, high-rigidity uses. Coat with paint or wax to block water uptake.

Applications: oven trays and racks, automobiles, drones, RC cars, and power tools.

PA6 CF Filament Printing Guide
