PPA

Original price was: $133.39.Current price is: $119.99.

Buy More Save More! Quick add for bulk savings.

4 Rolls — 5% OFF

6 Rolls — 10% OFF

10 Rolls — 15% OFF

As low as $101.99 per roll.

Product Features

Long-Term Heat Resistance up to 120℃
Ultra-Low Warping & Excellent Hydrolysis Resistance
Smooth Surface & High Wear Resistance
High-Speed Printing up to 180 mm/s
Diameter: 1.75mm +/- 0.03mm

Cautions for Use

Hardened Steel Nozzle Recommended
Minimum 0.4 mm Nozzle Size, 0.6mm Recommended
Mandatory Dry Out Before Use
AMS & CFS Compatible
Sealed Storage with Desiccant

Shield-12

Clear

SKU: N/A Category: PA

Order Info

Free shipping on orders over $89
Free shipping on orders over $199 to remote areas including Alaska, Hawaii, Puerto Rico, Guam, Northern Mariana Islands and American Samoa. See our Shipping Policy for details.

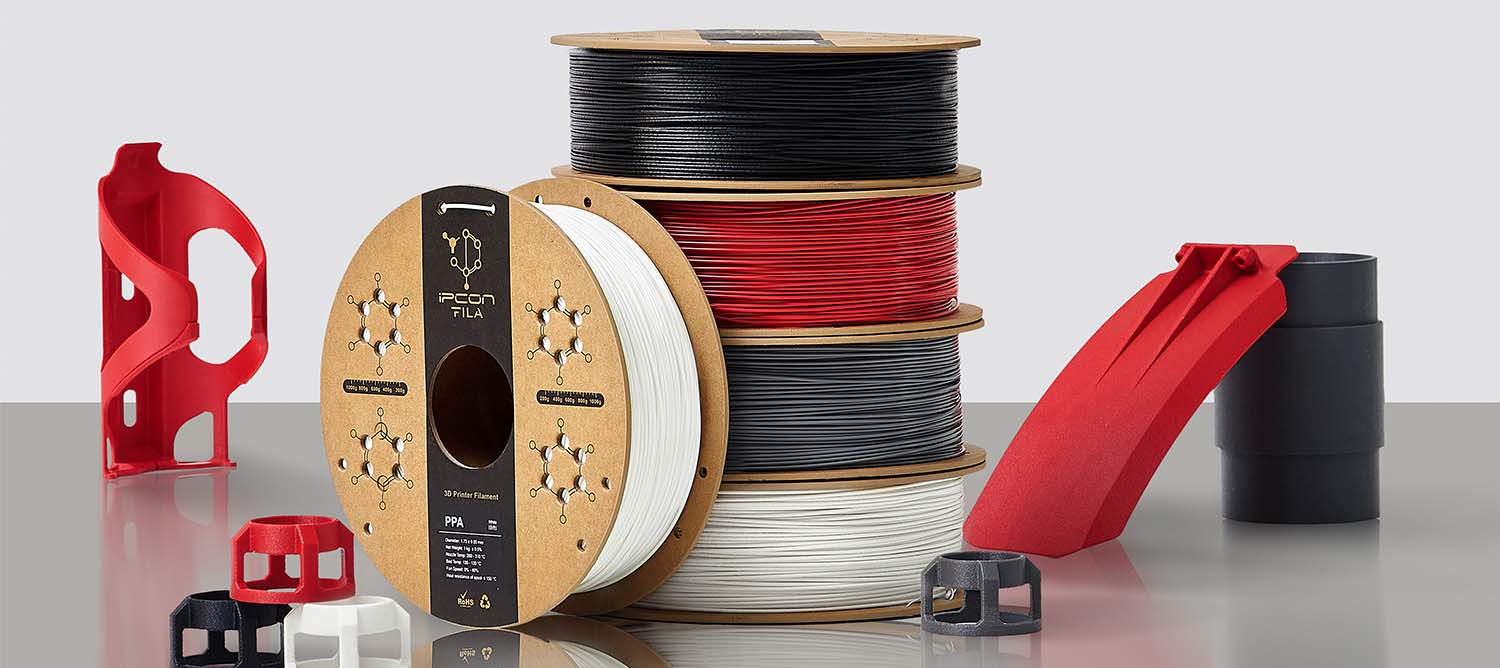

Elevate Your Engineering Applications with High-Performance PPA Pure Resin

Engineered for demanding environments, PPA Pure Resin delivers exceptional thermal stability, superior surface aesthetics, and outstanding chemical resistance. Its advanced semi-aromatic polyamide structure ensures reliable mechanical performance under high heat and humidity, making it ideal for precision components, automotive underhood parts, and electronic connectors. Experience unmatched purity and processability for next-generation industrial design.

Extreme Temperature and Moisture Resistance
Challenging Harsh Environments

PPA (Polyphthalamide) material inherently possesses exceptional heat resistance and hydrolysis resistance. The IPCON PPA family can withstand long-term exposure to high-temperature environments above 120°C, while the short-term peak temperature resistance of PPA-CF and PPA-GF exceeds 220°C. Strength degradation in wet conditions is only 3%, making it ideal for extreme applications such as high-temperature filament clips, high-temperature and high-humidity components in industrial equipment, and automotive engine compartments.

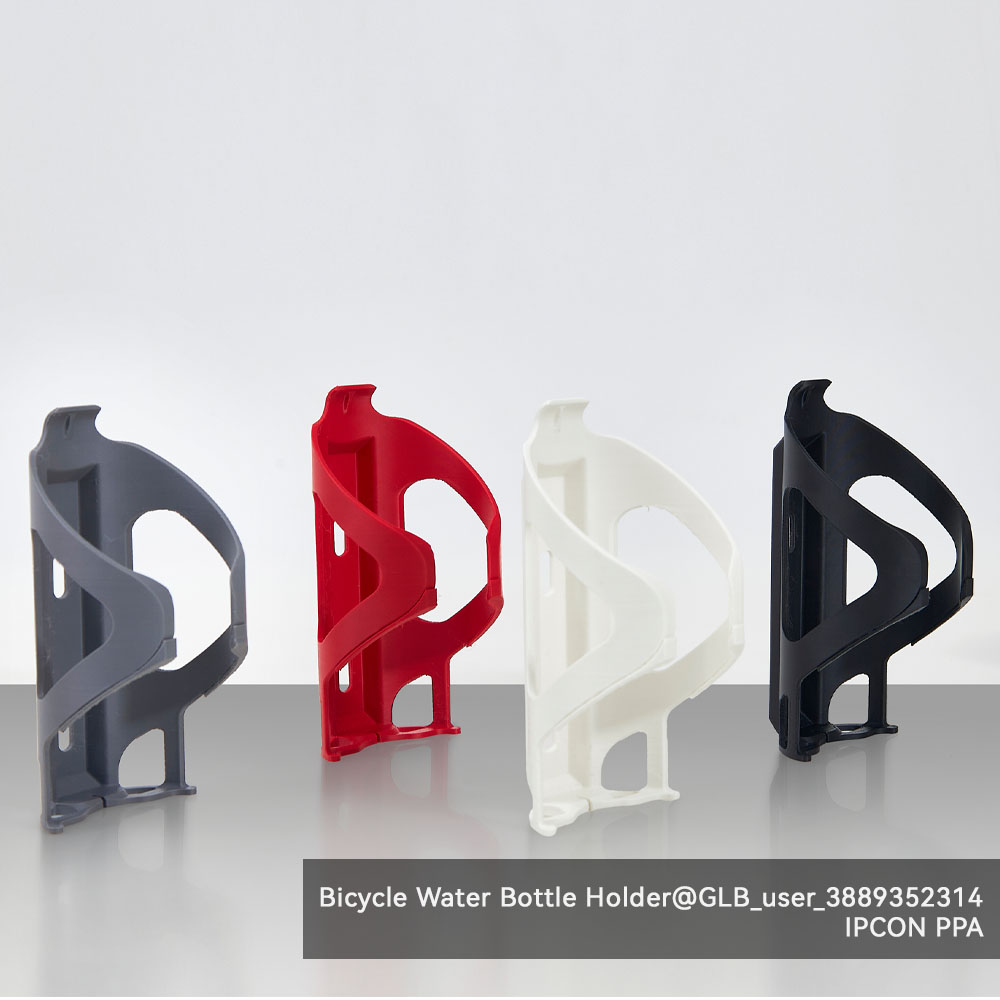

Four Basic Color Series
Unlocking Industrial Aesthetic Expression

IPCON PPA and PPA-GF filaments are available in four standard color options: black, white, gray, and red. While ensuring functionality such as lightweight, high strength, water resistance, and high wear resistance, they also provide end products with a professional visual language. Custom color matching services are also supported to help companies create branded product labels.

Filament Performance Comparison Table

Project	IPCON* PPA	IPCON* PPA-GF	IPCON* PPA-CF	Bambu PPA-CF
Strength (Flexural Strength – XY)	123 MPa	155 MPa	256 MPa	208 MPa
Layer Strength (Flexural Strength – Z)	66 MPa	75 MPa	80 MPa	63 MPa
Stiffness (Flexural Modulus – XY)	2672 MPa	5920 MPa	11384 MPa	9860 MPa
Layer Stiffness (Flexural Modulus Z)	2576 MPa	3240 MPa	3278 MPa	3240 MPa
Toughness (Impact Strength – XY)	32.8 kJ/m³	27.5 kJ/m³	34.2 kJ/m³	41.7 kJ/m³
Layer Adhesion (Impact Strength Z)	5.4 kJ/m²	4.8 kJ/m³	4.6 kJ/m³	4.3 kJ/m³
Max Printing Speed	180 mm/s	250 mm/s	250 mm/s	N/A
Heat Deflection Temp (0.45 MPa)	103 °C (Before Annealing) 130 °C (After Annealing)	227 °C	227 °C	227 °C

*The mechanical properties were tested on specimens printed by IPCON using a Bambu Lab XIC printer, 0.4 mm nozzle (Nozzle Temp: 290°C, Bed Temp: 100°C, Print Speed: 150mm/s, Infill Density: 100%,Infill Pattern: Concentric) and black filament. . Data is for user reference and comparison only. Bambu Lab data sourced from their TDS.

Compatibility

Printer Type	Enclosed, Open-Frame
Nozzle Material	Hardened Steel(Rec.), Stainless Steel
Nozzle Size	0.4mm, 0.6mm(Rec.), 0.8 mm
Build Plate	Smooth/Textured PEI
Support Material	Itself or support for PA
Adhesive	Liquid glue or IPCON solid glue stick
AMS / CFS	Compatible

Printing Guide

Parameter	Setting
Pre – Print Drying	100 – 130 °C, 10 – 14h
Recommended Nozzle Temp	280-310°C
Recommended Bed Temp	100-120°C
Cooling Fan	0%-40%
Print / Storage Temp	≤35°C, ≤20% RH (Sealed with Desiccant)
Print Speed	Up to 180mm/s

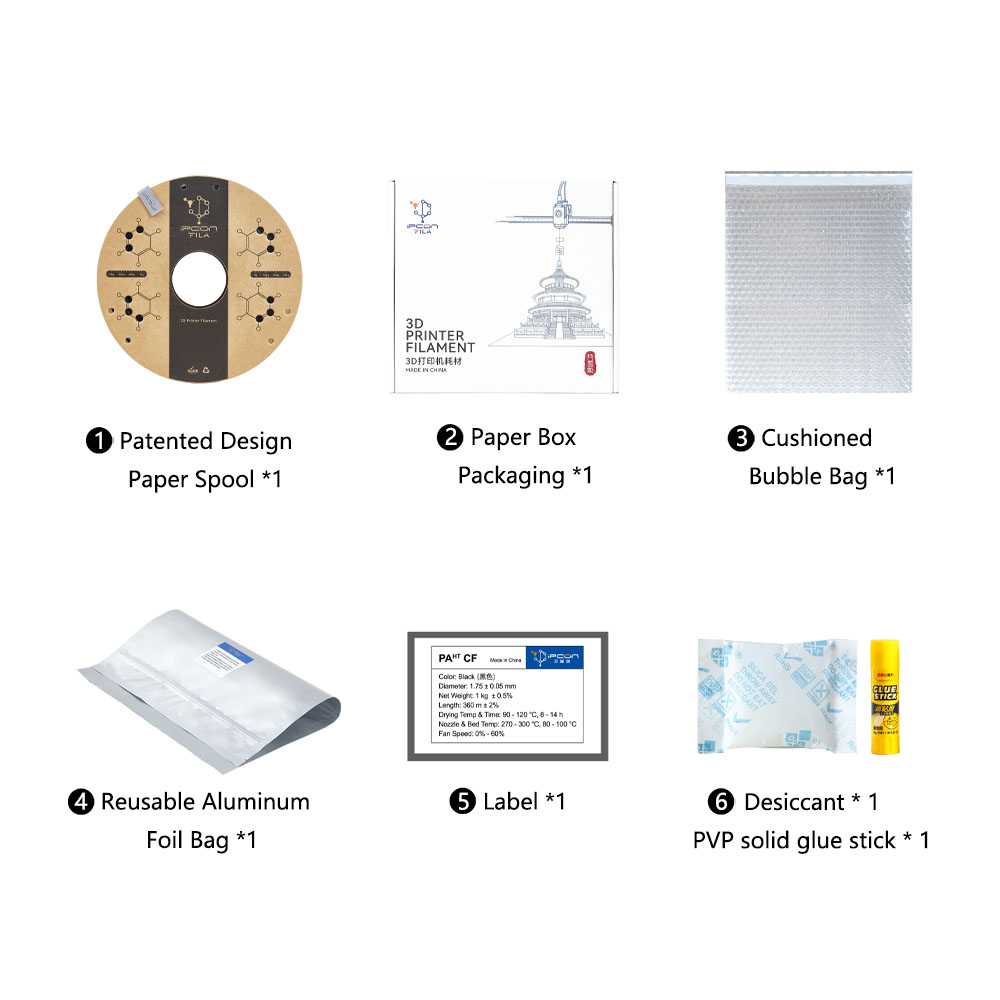

IPCON PPA is now officially available, featuring a patented paper spool and eco-friendly paper box packaging—complete with protective bubble wrap, a reusable aluminum foil bag, a label, and desiccant—all designed to ensure premium quality and support sustainability. Stay connected with our latest updates and innovations by following IPCON on social media.

*The color and texture of the filament are subject to the physical product. Images are for reference only.

Key Notes

High-Speed Printing: PPA-CF/GF supports up to 250 mm/s (infill). Set max volumetric speed to 21 mm³/s. Reduce speed to <150 mm/s for parts in liquid environments. Apply build plate adhesive before printing.
Filament Handling: Dry filament at 100–130°C for 10–14h before use. Store sealed with desiccant (≤35°C, ≤20% RH) to prevent defects.

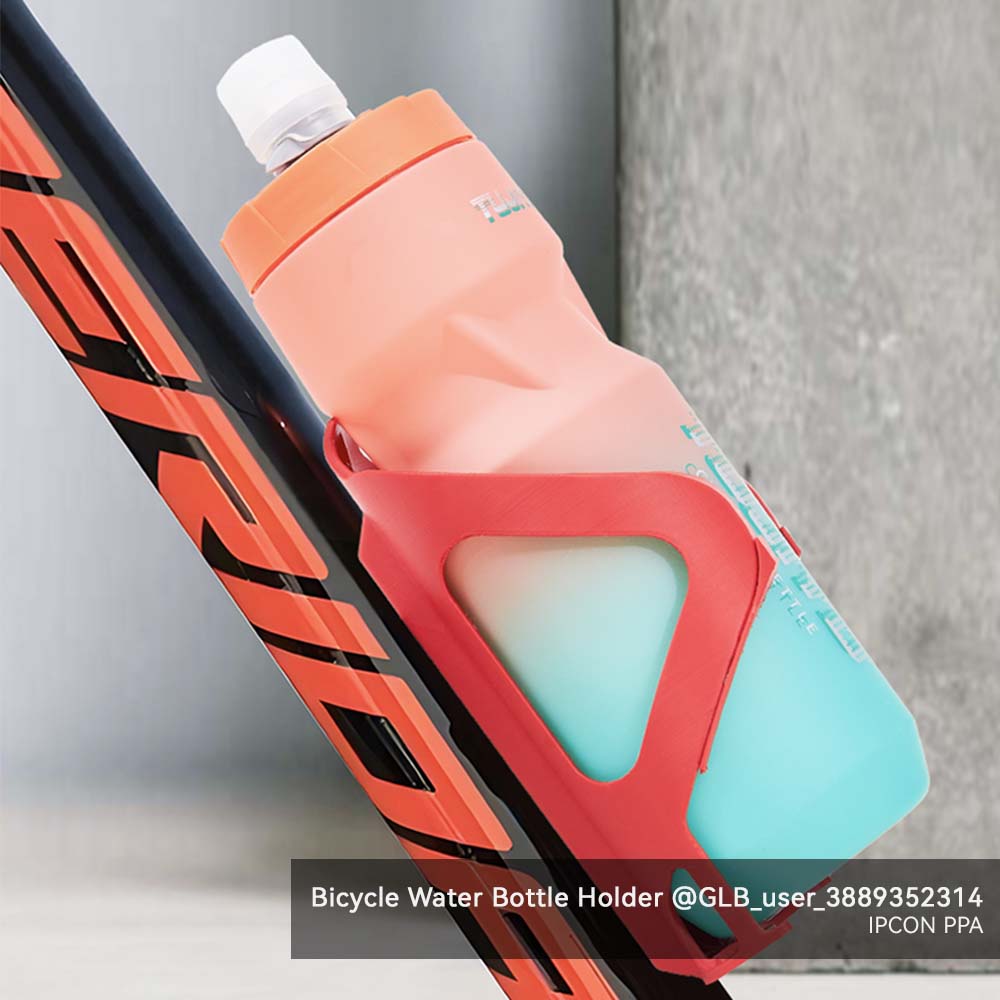

Applications: Bikes parts, insulating or wear resistant parts for electronic devices and smart home appliances, metal parts rwplacement for automotive and machinery industries.

PPA Filament TDS

PPA Filament MSDS

PPA Filament Printing Guide
