Name: PPS CF
SKU: 1419
Availability: InStock

PPS CF

pla carbon fiber, pla cf filament, ed printing filament

pla cf filament, 3d printing filament, pla filament

3d printing filament, pla cf carbon fiber, pla 3d printing

pla cf, ipcon, 3d printing filament, filament

PPS CF

Original price was: $129.99.Current price is: $116.99.

Buy More Save More! Quick add for bulk savings.

4 Rolls — 5% OFF

6 Rolls — 10% OFF

10 Rolls — 15% OFF

As low as $99.44 per roll.

Product Features

Long-Term Heat Resistance up to 200°C
Ultra-Low Warping & Excellent Hydrolysis Resistance
Superior Chemical Resistance-Strong acids, alkalis, solvents
Smooth Surface & High Wear Resistance
High-Speed Printing up to 300 mm/s
Diameter: 1.75mm ± 05mm

Cautions for Use

Hardened Steel Nozzle Recommended
Minimum 0.4 mm Nozzle Size, 0.6mm Recommended
Mandatory Dry Out Before Use
Sealed Storage with Desiccant
Enclosed Printer with Heated Chamber Required
AMS & CFS Compatible

Shield-10

Clear

SKU: N/A Category: PPS

Order Info

Free shipping on orders over $89
Free shipping on orders over $199 to remote areas including Alaska, Hawaii, Puerto Rico, Guam, Northern Mariana Islands and American Samoa. See our Shipping Policy for details.

IPCON Fiber-Reinforced PPS CF Filament

Strength + Safety + Stability — A Threefold Evolution. Engineered with carbon fiber reinforcement for high stiffness and industrial-grade strength, while maintaining easy printability. Delivers top-tier flame retardancy, extreme heat resistance up to 200°C, and superior resistance to water, hydrolysis, and aggressive solvents. Built for demanding applications where performance and reliability cannot be compromised.

High Stiffness, High Strength, Easy Printing
Boost Industrial Mass Production

IPCON PPS CF leverage a unique formulation from a century-old German materials leader, along with specialized carbon fiber reinforcement technologies. This significantly enhances the stiffness, strength, dimensional stability, and printability of PPS, while also delivering superior layer adhesion.

Filament Performance Comparison Table

Project	IPCON PPS CF*	IPCON PPS GF*	Bambu PPS CF	Bambu PPS GF
Strength (Flexural Strength – XY)	137 MPa	112 MPa	142 MPa	102.3 MPa
Layer Strength (Flexural Strength – Z)	62 MPa	58 MPa	35 MPa	45.7 MPa
Stiffness (Flexural Modulus – XY)	7402 MPa	4530 MPa	7169 MPa	4110.7 MPa
Layer Stiffness (Flexural Modulus – Z)	2885 MPa	2212 MPa	2400 MPa	2605.7 MPa
Toughness (Impact Strength – XY)	22.3 kJ/m²	31.7 kJ/m²	27.8 kJ/m²	27.3 kJ/m²
Layer Adhesion (Impact Strength – Z)	8.8 kJ/m²	10.6 kJ/m²	2.8 kJ/m²	4.3 kJ/m²
Heat Resistance (HDT @ 0.45 MPa)	244 °C	241 °C	264 °C	224.3 °C
Saturated Water Absorption	0.05 %	0.05 %	0.05 %	0.11 %
Max Print Speed	300 mm/s	300 mm/s	100 mm/s	250 mm/s

*The mechanical properties were tested on specimens printed by IPCON using a Bambu Lab P2S printer, 0.4 mm nozzle (Nozzle Temp: 345°C, Bed Temp: 110°C, Chamber Temp: 60°C, Print Speed: 100mm/s, Infill Density: 100%,) with the IPCON PPS CF filament. Data is for user reference and comparison only. Bambu Lab data sourced from their TDS.

AMS-Ready PPS CF – Seamless from Prototype to Production

IPCON PPS CF is fully compatible with high-temperature printers like the H2D and Q2 series when used with adhesive. It supports automatic material feeding and spool swapping via AMS, enabling stable, high-speed printing up to 200 mm/s. This allows for a smooth transition from design validation to mass production of high-stiffness, high-strength industrial components.

pps cf filament, pps filament, pps printing

IPCON PPS CF 3D Printing Filament With stable, high-speed printing

Top-Tier Flame Retardancy & Extreme Heat Resistance
Safeguarding Safety Boundaries

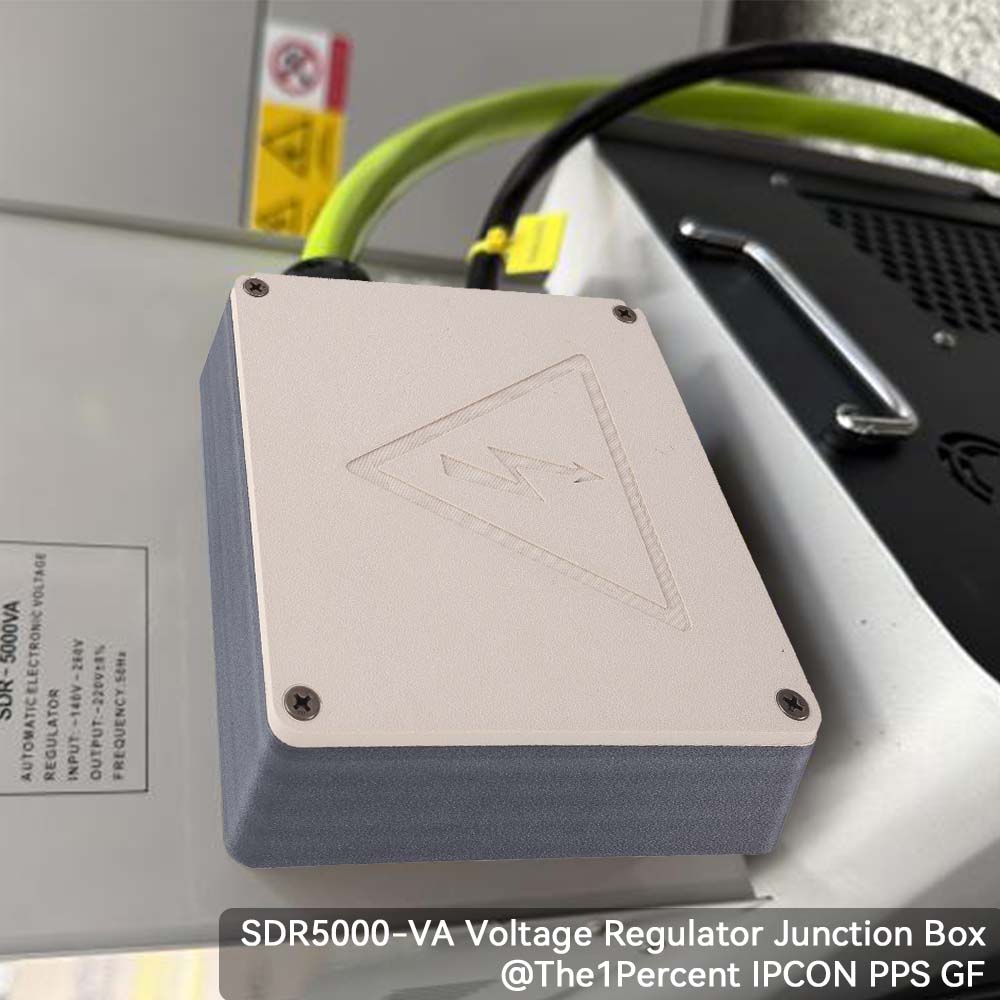

IPCON PPS CF and PPS GF retain the inherent top-tier flame retardancy and extreme high-temperature resistance of PPS. Additionally, PPS GF possesses excellent and stable electrical insulation properties, making it suitable for constructing a “thermal runaway firewall” in demanding components such as automotive turbo intake pipes, new energy vehicle battery brackets, and high-temperature electrical equipment housings.

Top-Tier Flame Retardancy: Simultaneously meets UL94 V-0 @ 0.8 mm / 1.6 mm / 3.2 mm; Limiting Oxygen Index (LOI) as high as 47%; No melt dripping, low smoke, and non-toxic in open flame

Extreme Heat Resistance: Heat Deflection Temperature up to 264°C (PPS CF) and 241°C (PPS GF); Long-term service temperature up to 200°C

pps cf, pps filameny, 3d printer filament

Excellent Electrical Insulation of PPS GF: Ultra-high Volume Resistivity > 10¹⁵ Ω·cm; Ultra-high Dielectric Strength > 20 kV/mm; Ultra-low Dielectric Loss Factor < 0.005

Excellent Water and Solvent Resistance
Fearless Against Chemical Corrosion

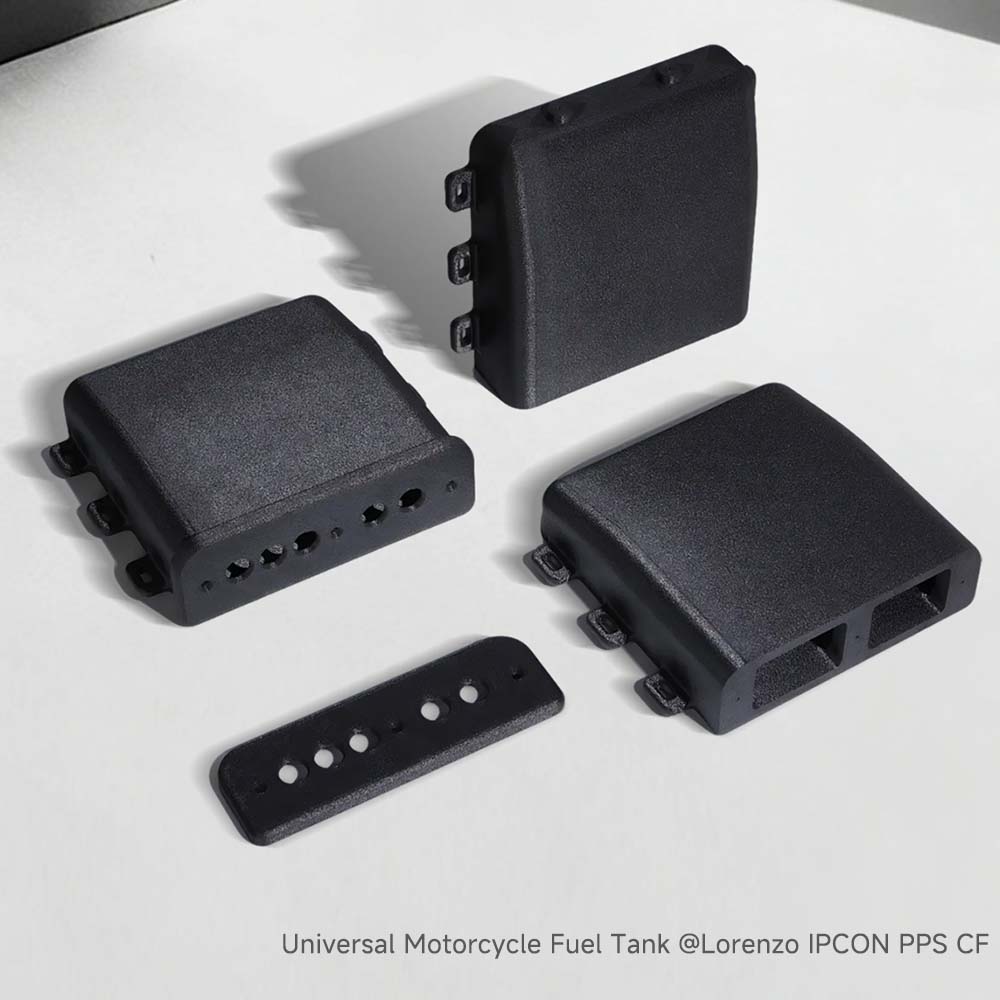

IPCON PPS CF retains the outstanding hydrolysis, solvent, and chemical resistance inherent to PPS. Their extremely low water absorption ensures almost no degradation in printing strength under wet conditions, making them ideal for challenging applications such as automotive fuel systems, steam sterilization of medical devices, and chemical pump valves.

IPCON PPS CF 3D Printing Filament With Excellent Water and Solvent Resistance

Extremely low water absorption: 0.05%, only 1/4 that of PC and 1/16 that of PAᴴᵀ. Strength retention > 90% after 500 hours of high-pressure steam cycling at 121°C. Strength retention > 85% after 168 hours of immersion in highly corrosive media such as 50% sulfuric acid and 40% sodium hydroxide.

Compatibility

Printer Type	Enclosed
Nozzle Material	Hardened materials (e.g. Hardened Steel, Tungsten Carbide, Diamond)
Nozzle Size	0.4mm, 0.6mm(Rec.), 0.8 mm
Build Plate	Smooth/Textured PEI
Support Material	Itself or support for PPS
Adhesive	Liquid glue or IPCON solid glue stick
AMS / CFS	Compatible

Printing Guide

Parameter	Setting
Pre – Print Drying	100 – 140 °C, 6 – 8h (Convection Oven)
Recommended Nozzle Temp	320 – 360 °C
Recommended Bed Temp	100 – 120 °C
Cooling Fan	0%-40%
Print / Storage Temp	≤35°C, ≤20% RH (Sealed with Desiccant)
Print Speed	Up to 300mm/s

IPCON PPS CF is now officially available, featuring a patented paper spool and eco-friendly paper box packaging—complete with protective bubble wrap, a reusable aluminum foil bag, a label, and desiccant—all designed to ensure premium quality and support sustainability. Stay connected with our latest updates and innovations by following IPCON on social media.

*The color and texture of the filament are subject to the physical product. Images are for reference only.

pa ht cf, paht filament, 3d printer filament

Key Notes

Nozzle Requirements: Use hardened nozzles (≥0.4mm aperture) made of hardened steel, tungsten carbide, or diamond to prevent clogging and wear from the carbon/glass fibers in PPS CF/PPS GF.
Filament Drying & Storage: Dry opened or stored spools at 100–140°C for 6–8 hours before printing. Maintain filament in a dry, sealed environment with desiccant during printing (≤120°C, ≤20% RH).
Optimal Printing Setup: Use an enclosed printer with chamber heating (e.g., Bambu Lab H2D/H2S). Apply the provided glue stick to a 100-120°C bed and print at 320-360°C to prevent warping and ensure top performance.

PPS CF Filament Printing Guide
